Using Flex Layout

Introduction

Flex-layout is a layout structuring paradigm built within the VTEX IO Store Framework that allows the construction of complex and custom layouts. This paradigm uses the concept of rows and columns to set the desired component positioning on a given page.

There two basic building blocks in every flex-layout: the flex-layout.row and the flex-layout.col. If you are already familiar with the flexbox layout used in CSS, flex-layout should be easy to get a grasp of, since that's what flex-layout.row and flex-layout.col boast under the hood.

The flex layout not only improves layout building but also helps to align everything, since gaps, margins and padding can be passed down to flex-layout.row and flex-layout.col as props.

Practical example

Let's build an About Us page from scratch using flex-layout, just as the one below:

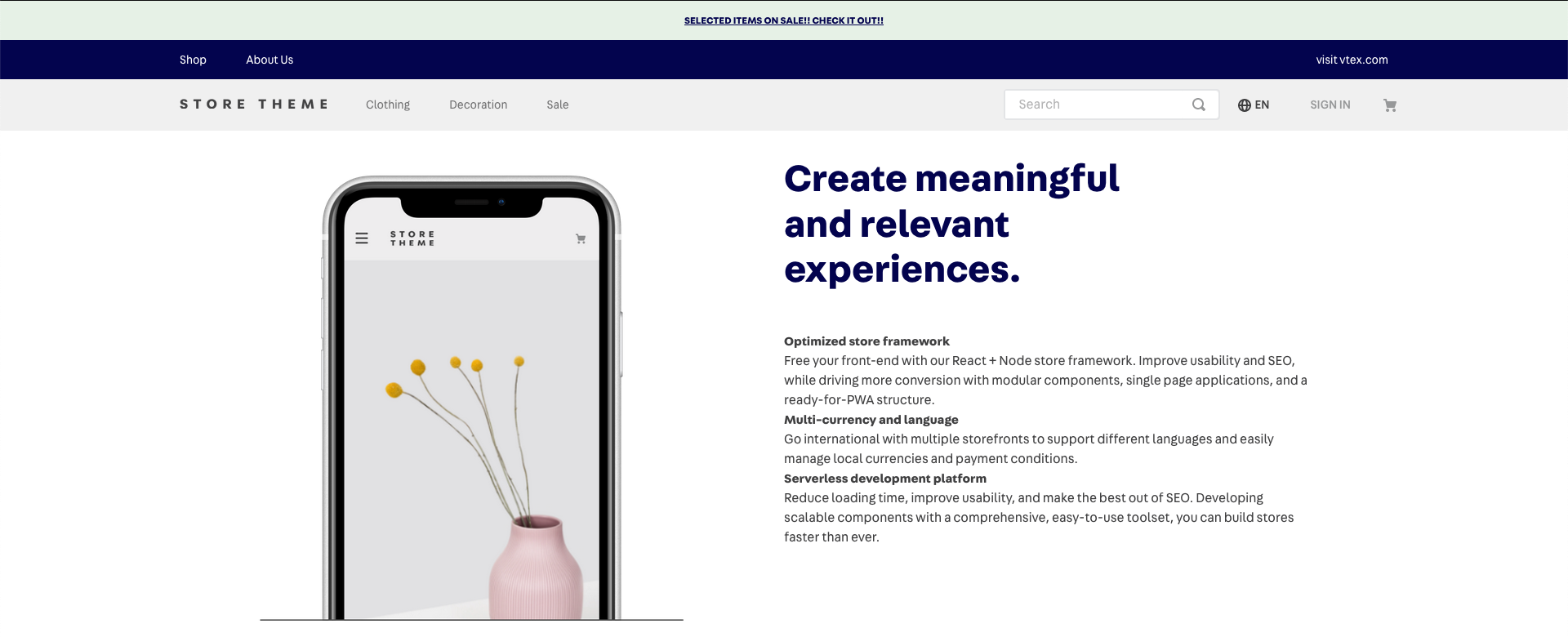

Screen Shot 2019-08-21 at 5 47 45 PM

If we think on how we could divide this page layout, we realize that it could be easily thought of as a "one row with two columns" model:

Screen Shot 2019-08-21 at 4 05 19 PM

To achieve the layout shown above, we are going to use the flex-layout.row and flex-layout.col components, which are going to define each row and column in the page layout.

First, let's declare (in the blocks folder or blocks.jsonc file) the main block for the entire About Us page:

json
"store.custom#about-us": {
  "blocks": [
    "flex-layout.row#about-us"
  ]
},

As you can see, the store.custom#about-us block consists of a single flex-layout.row block, because it is always the highest order block in the flex-layout. You should never use the flex-layout block directly.

Now that we declared that we are going to use flex-layout.row#about-us, let's in fact define it:

1
2
3
4
5
6
7
8
9
10
11
"store.custom#about-us": {
  "blocks": [
    "flex-layout.row#about-us"
  ]
},
"flex-layout.row#about-us": {
  "child": [
    "image#mobile-phone",
    "flex-layout.col#text-about-us"
  ]
},
The flex-layout.row block is going to display its child dependencies in an interface, from left to right, one after the other.

As shown above, the flex-layout.row#about-us was declared with two child blocks, one of them being an image and the other a flex-layout.col block. Both flex-layout blocks only accept blocks allowed by their parent.

Let's define our flex-layout.col#text-about-us block:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
"store.custom#about-us": {
  "blocks": [
    "flex-layout.row#about-us"
  ]
},
"flex-layout.row#about-us": {
  "child": [
    "image#mobile-phone",
    "flex-layout.col#text-about-us"
  ]
},
"flex-layout.col#text-about-us": {
  "child": [
    "rich-text#title-about-us",
    "rich-text#about-us"
  ],
  "props": {
    "blockClass": "textColumn",
    "preventVerticalStretch": true
  }
},
The flex-layout.col#text-about-us block is going to display its child dependencies in an interface, from left to right, one after the other.

The preventVerticalStretch prop prevents the column from occupying 100% of its parent's height when set as true. You can use other custom row props, which can be found in the Flex Layout documentation.

Here is the final about-us.jsonhttps://github.com/vtex-apps/store-theme/blob/master/store/blocks/about-us.json file, using Flex Layout:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
{
  "store.custom#about-us": {
    "blocks": ["flex-layout.row#about-us"]
  },
  "flex-layout.row#about-us": {
    "child": ["image#mobile-phone", "flex-layout.col#text-about-us"]
  },
  "flex-layout.col#text-about-us": {
    "child": ["rich-text#title-about-us", "rich-text#about-us"],
    "props": {
      "blockclass": "textColumn",
      "preventVerticalStretch": true
    }
  },
  "rich-text#title-about-us": {
    "props": {
      "text": "# Create meaningful and relevant experiences.",
      "blockClass": "title"
    }
  },
  "image#mobile-phone": {
    "props": {
      "src": "https://storecomponents.vteximg.com/files/mobile-phone.png",
      "maxHeight": "",
      "maxWidth": "",
      "blockClass": "storePrint"
    }
  },
  "rich-text#about-us": {
    "props": {
      "text": "**Optimized store framework** \n Free your front-end with our React + Node store framework. Improve usability and SEO, while increasing conversion with modular components, single-page applications, and a ready-for-PWA structure. \n **Multi-currency and language** \n Go international with multiple storefronts to support different languages and easily manage local currencies and payment conditions. \n **Serverless development platform** \n Reduce loading time, improve usability, and make the best out of SEO. Developing scalable components with a comprehensive, easy-to-use toolset, you can build stores faster than ever.",
      "blockClass": "about"
    }
  }
}

Rules and recommendations

  • Each row and column can have as many levels needed.
  • When creating levels, it is necessary to alternate between rows and columns. Within a row, you can only place columns, and within columns, only rows.
  • Be mindful that the structure that you set in your flex layout does not only affect your code organization, but also reflects in the way that blocks will be shown and managed through the Site Editor admin. Therefore, it is always important to take the organization of both code and Site Editor into account when planning to apply the Flex Layout onto a page.
